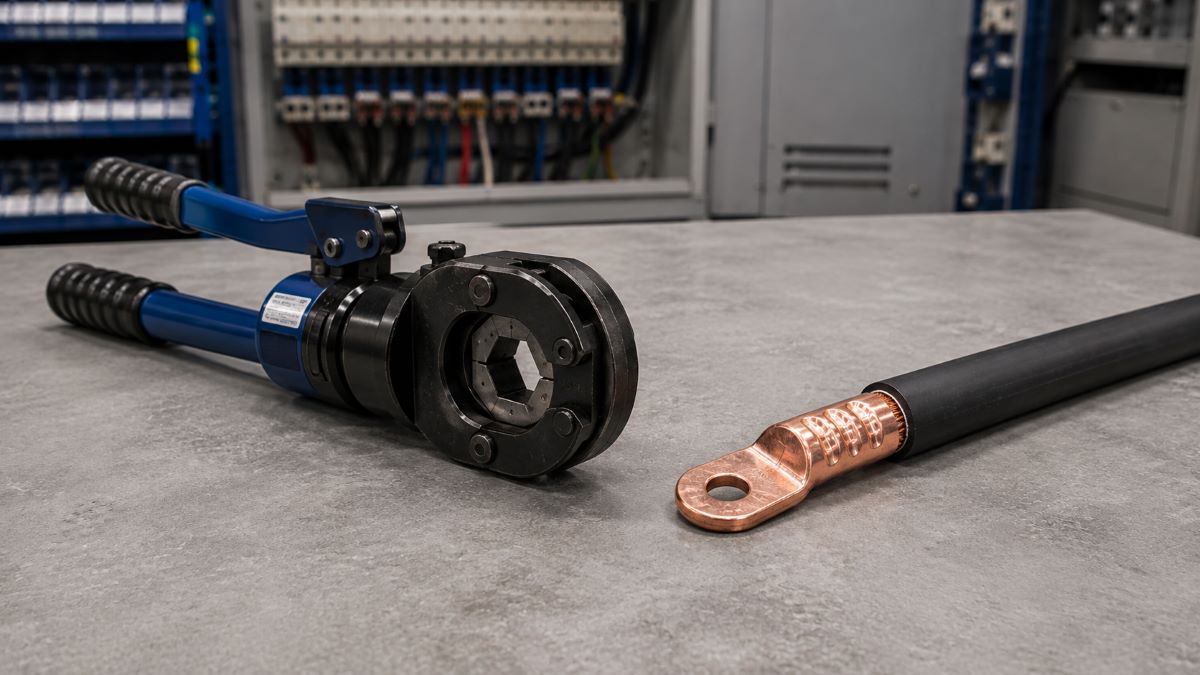

How to Crimp a Cable Lug Correctly

A correctly crimped cable lug creates a gas-tight connection, meaning the crimp physically deforms the lug barrel and the conductor into one solid mass that excludes air and moisture from the joint. Get it wrong and the connection develops high resistance, generates heat under load, and can eventually fail outright. Picking the right lug for the wire size and stud, along with the correctly matched crimping die, does most of the work before the crimper is even in hand. This guide walks through selecting the right lug, preparing the conductor, choosing the die, crimping correctly, and inspecting the finished connection.

Selecting the Right Lug

Three specifications have to match before crimping even starts:

• Conductor size: the lug's barrel must match the conductor's AWG or MCM size exactly; an oversized barrel leaves air gaps that create a loose, high-resistance crimp, while an undersized barrel won't accept the conductor at all.
• Stud size: the lug's bolt hole diameter (commonly 1/4", 5/16", 3/8", or 1/2") must match the terminal or busbar stud it will connect to.
• Material: copper lugs are standard for copper conductors; aluminum conductors need aluminum or bimetallic lugs to avoid galvanic corrosion at the joint. A bimetallic lug is required whenever aluminum cable terminates to a copper busbar or terminal.

Preparing the Conductor

• Cut the conductor square using a proper cable cutter, never a hacksaw or side cutters, which can deform the individual strands.
• Strip to the barrel length. Most lug barrels run 1 to 1.5 inches long; strip the insulation to match that length exactly, and test-fit the stripped conductor before crimping to confirm.
• Inspect every strand. All strands should be intact and parallel; if any are nicked, cut, or splayed, re-cut and re-strip rather than crimping a damaged conductor, since a compromised strand reduces the effective cross-sectional area and creates a weak point.
• Remove surface oxidation. A stainless steel wire brush clears oxidation from the stripped conductor before crimping; this step is mandatory on aluminum conductors, since aluminum oxide is itself an insulator and dramatically increases contact resistance if left in place.

Choosing the Right Die

The crimping die has to match both the lug size and the wire gauge exactly. Hexagonal dies are the most common for tubular copper lugs, providing even, uniform, 360-degree compression around the barrel; indent or four-point dies are specified for certain smaller lugs and specific manufacturer applications. Every lug typically carries a die number or a graphical indication of the number and position of required crimps, printed or stamped on the barrel, and that reference should be followed exactly rather than assumed. Using the wrong die produces either an under-crimp, which stays loose, or an over-crimp, which can fracture the lug material.

Tool Selection by Wire Size

Crimping the Lug

• Position the lug in the die. Center the barrel of the lug between the crimping dies, not the tongue or the transition area between barrel and tongue.
• Confirm the conductor is fully seated all the way to the back of the barrel before crimping, with no gap between the insulation and the barrel mouth.
• Apply the crimp. For ratcheting tools, squeeze the handles until the tool completes its full cycle and releases on its own; stopping partway through produces an incomplete crimp. For hydraulic tools, pump until the dies fully close or the pressure relief valve releases.
• Complete every marked crimp point. Larger lugs often specify more than one crimp location along the barrel; skipping any of them leaves the connection under-compressed even if the visible crimp looks fine.

Inspecting the Finished Crimp

A finished crimp shouldn't just hold the conductor in place; it needs to look and perform correctly. Reject and redo any crimp that looks crushed, split, under-compressed, off-center, or only partially filled, even if the conductor doesn't immediately pull free. For critical connections, a pull test, gently but firmly tugging the conductor to confirm it doesn't shift in the barrel, verifies the mechanical integrity of the crimp before the connection is put into service. Compression lugs should never be reused once crimped; the barrel has already been permanently deformed, so a failed inspection means starting over with a new lug.

After the Crimp: Insulation and Corrosion Protection

Outdoor, underground, or otherwise exposed connections benefit from adhesive-lined heat-shrink tubing over the finished crimp, which seals out moisture and provides strain relief at the transition between the lug and the cable jacket. Grounding connections made with a properly rated ground clamp follow the same core principles: matched conductor size, a clean, oxidation-free contact surface, and full mechanical compression rather than a loose or partial connection.

The Bottom Line

A correctly crimped cable lug comes down to matching three things exactly: the lug's barrel to the conductor size, the crimping die to the lug, and the tool's force capacity to the wire gauge. Careful conductor preparation, complete strand inspection, and full-cycle crimping at every marked point produce the gas-tight, low-resistance joint the connection depends on. Skipping any of those steps, using an approximate die, an undersized tool, or a damaged conductor, produces a connection that looks acceptable but runs hot and eventually fails under load.
